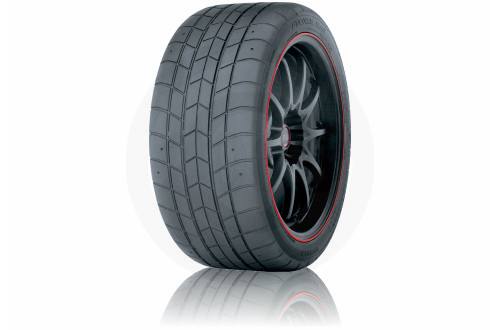

Click here to view full image.
Request a Quote Request a Brochure Tire Fitment Guide
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The Proxes RA1 is a street legal competition tire that features high-tech components to provide an uncommon advantage to the cost-conscious competitor who still demands quick lap times. It's true performance from Toyo Tires!

  • Soft But Durable R-Compound: Improves grip for better competitive handling and performance.
  • Stepped Tread Design: Increased tread area and limited void improves dry traction. Groove arrangement assists with wet traction.
  • Tread depth indicators: Circles in tread indicate tread depth. Full 8/32nds tread depth provides good competitive wet traction. Shaving to 6/32nds improves dry traction.
WET AND DRY GRIP
  • High-grip tread compound dispersed in Solution SBR compound for enhanced grip in both wet and dry, plus uniform wear.
  • Nylon cap and edge plies to maintain optimum footprint shape and grip at high speeds.
THERMAL STABILITY
  • Two-ply rayon casing construction for thermal stability at high speeds.
  • Base compound to resist heat at high speeds.
  • Special sidewall compound to protect casing plies and provide heat resistance at high speeds.
STEERING RESPONSE
  • Free floating steel cord side ply for sidewall rigidity, cornering stability, and steering response.
  • Two-ply rayon casing for thermal stability at high speeds and sidewall rigidity when cornering.
RATINGS
  • V and Z speed-rated (depending on size)
  • UTQG Treadwear 100
  • UTQG Traction AA
  • UTQG Temperature A
OPERATING TEMPERATURE
  • 160 F to 220 F
TARGET HOT INFLATION PRESSURE
  • High 30's to Low 40's (PSI)
RECOMMENDED CAMBER
  • - 2.0 degrees to -5.0 degrees
MAXIMIZING TIRE LIFE
  • The degree of negative camber required to get the most performance out of the RA1 can often lead to inside shoulder wear.
  • To maximize tire life, the tire should be dismounted from the wheel and flipped (move inside shoulder to the outside) when the tire is about half way worn.
DIRECTIONAL TREAD
  • The directional nature of the RA1 tread pattern is only applicable for wet conditions to optimize water drainage. If they are being used in dry conditions, the direction of rotation does not matter.

Specifications

185/60R13 80V
Service Description 80V
Tire Size 185/60R13 80V
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 21.7468
Section Width 7.289
205/60R13 86V
Service Description 86V
Tire Size 205/60R13 86V
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 22.6924
Section Width 8.077
205/55R14 85V
Service Description 85V
Tire Size 205/55R14 85V
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 22.8847
Section Width 8.077
225/50R14 89V
Service Description 89V
Tire Size 225/50R14 89V
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 22.865
Section Width 8.865
225/45ZR15
Tire Size 225/45ZR15
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 22.9785
Section Width 8.865
205/50ZR15
Tire Size 205/50ZR15
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 23.077
Section Width 8.077
225/50ZR15
Tire Size 225/50ZR15
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 23.865
Section Width 8.865
205/55ZR16
Tire Size 205/55ZR16
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 24.8847
Section Width 8.077
225/50ZR16
Tire Size 225/50ZR16
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 24.865
Section Width 8.865
P255/50ZR16
Tire Size P255/50ZR16
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 26.047
Section Width 10.047
245/45ZR16
Tire Size 245/45ZR16
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 24.6877
Section Width 9.653
235/45ZR17
Tire Size 235/45ZR17
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 25.3331
Section Width 9.259
205/40ZR17 RD
Tire Size 205/40ZR17 RD
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 23.4616
Section Width 8.077
235/40ZR17
Tire Size 235/40ZR17
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 24.4072
Section Width 9.259
255/40ZR17
Tire Size 255/40ZR17
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 25.0376
Section Width 10.047
275/40ZR17
Tire Size 275/40ZR17
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 25.668
Section Width 10.835
205/50ZR17
Tire Size 205/50ZR17
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 25.077
Section Width 8.077
275/35ZR18
Tire Size 275/35ZR18
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 25.5845
Section Width 10.835
335/30ZR18
Tire Size 335/30ZR18
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 25.9194
Section Width 13.199
245/40ZR18
Tire Size 245/40ZR18
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 25.7224
Section Width 9.653
305/35ZR18
Tire Size 305/35ZR18
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 26.4119
Section Width 12.017
225/40ZR18 RD
Tire Size 225/40ZR18 RD
Warranty Standard Limited Warranty
UTQG 100 AA A
Section Height 25.092
Section Width 8.865
